Core

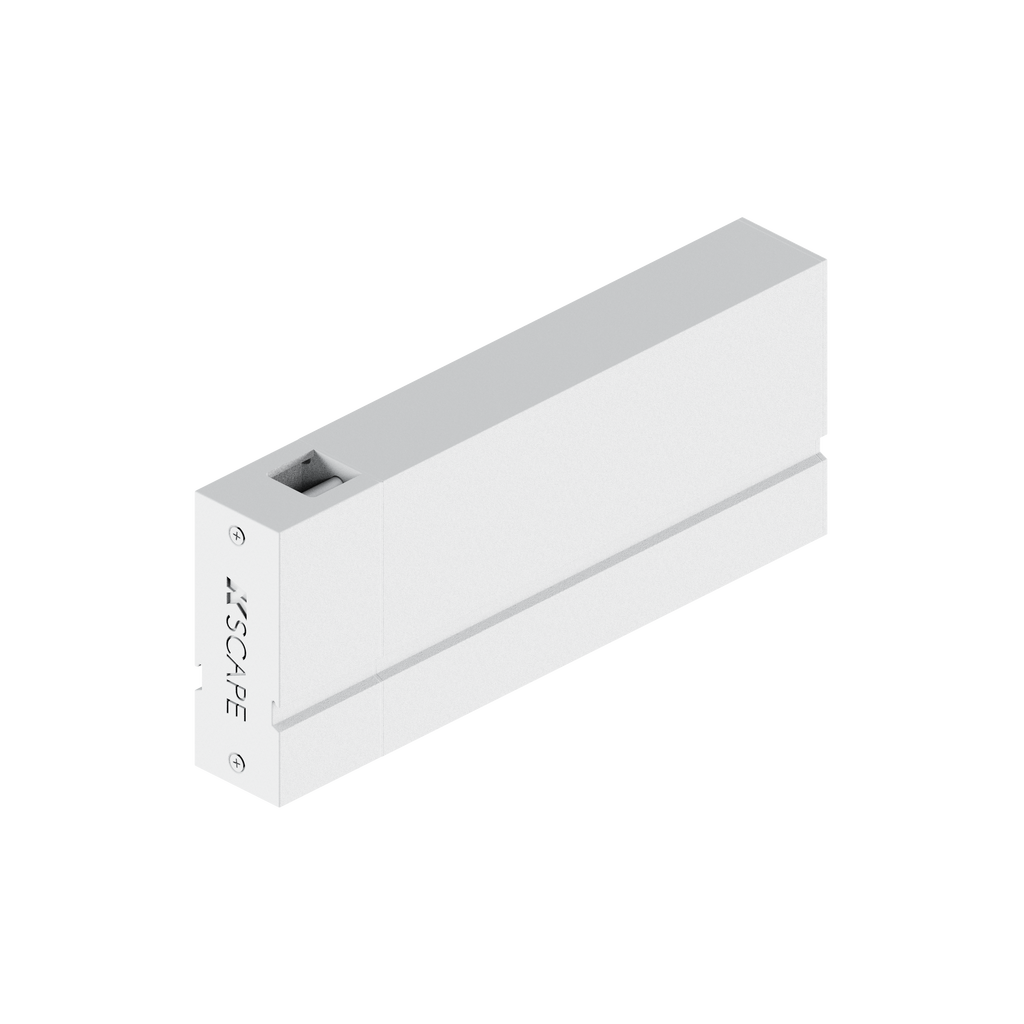

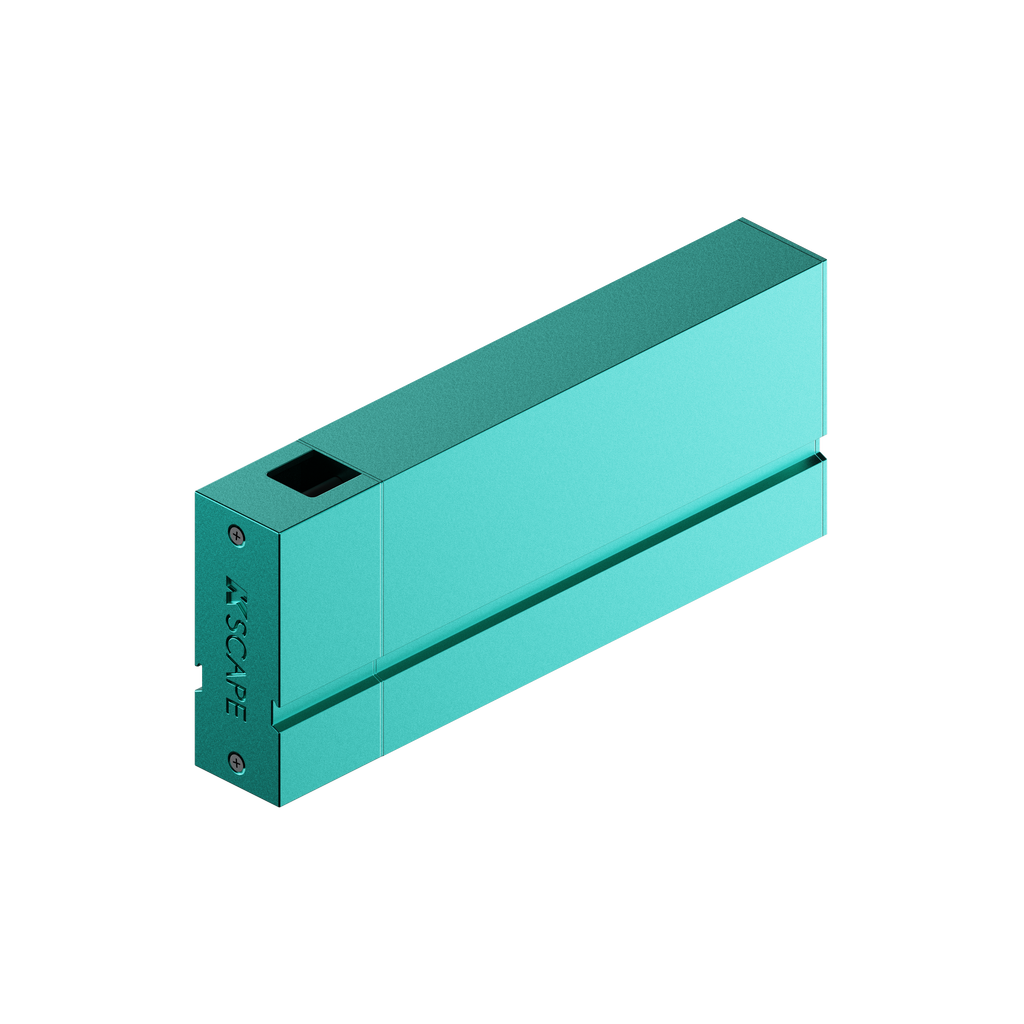

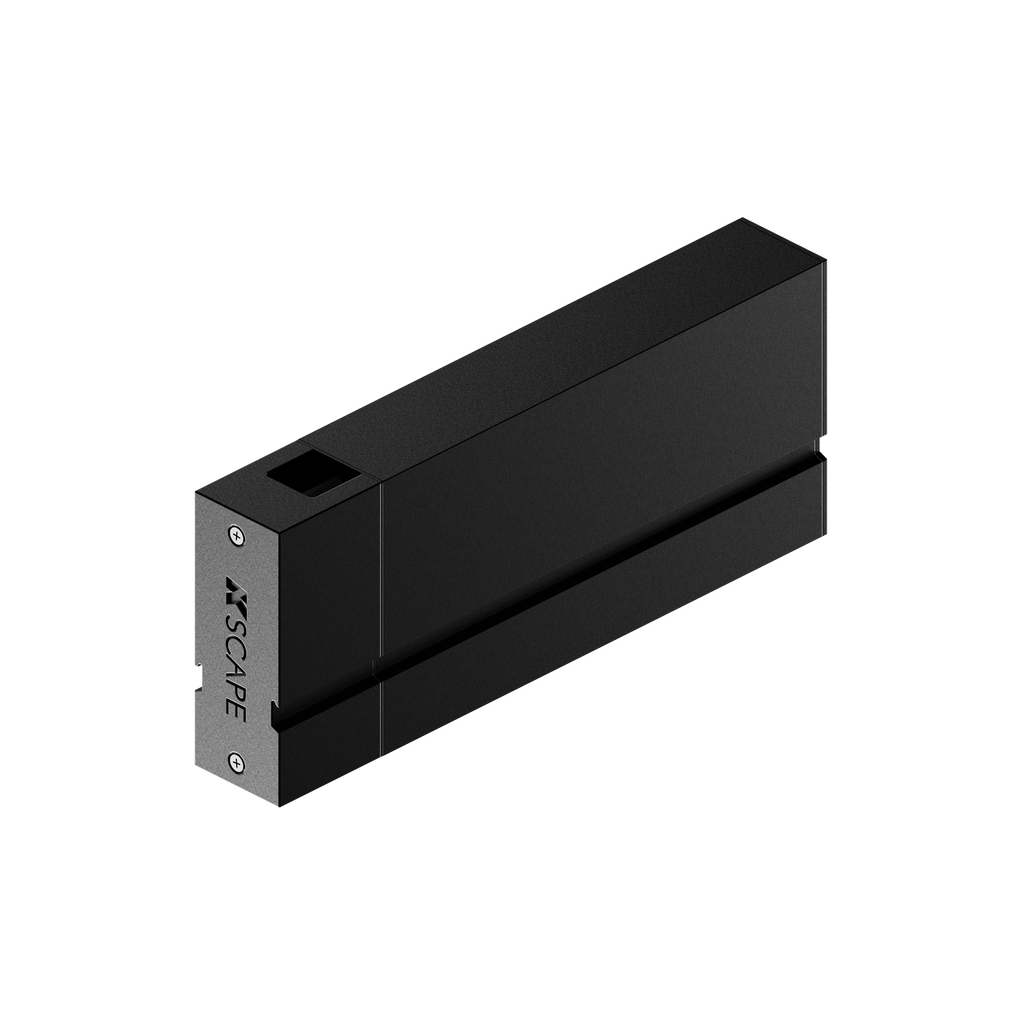

K-array unveils the CORE, an intelligent control system designed to integrate audio and lighting into a single, streamlined platform within the KSCAPE ecosystem, simplifying configuration and management for architectural applications. Housed in a painted aluminum enclosure, CORE manages up to four independent lighting channels (max 2 A per channel) and two audio channels, powered by an external 240 W PSU with 24 V or 48 V operation. Audio processing is handled via PureData (PD), while lighting control is managed through PWM signals. Configuration and system control are executed through the proprietary CORE-OS software. With options for integrated mounting on RAIL or remote installation, CORE adapts seamlessly to corporate, residential, hospitality, and cultural environments, delivering unified control in a compact and elegant form.

Condividi:
)

Scopri di più sulla linea Core!

Specifiche

General

  • Type:

    Centralized control unit for audio & lighting

  • Control Interface:

    CORE-OS proprietary software

Lighting Characteristics

  • Control Interface:

    4× PWM channels, max
    2A per channel (48 W @
    24 V / 96 W @ 48 V)

Amplifier

  • Output Power:

    CH1: 50 W @ 4 Ω (BTL) / CH2: 100 W @ 2 Ω (PBTL)

Digital Signal Processor

  • Pure Data (PD):

    Audio processing - Pure Data

Connectivity

  • Control Interface:

    Ethernet (RJ-45), USB, DALI bus (PS), 2× GPIO

Electrical/Mechanical Characteristics

  • Input voltage:

    Power supply: External 240 W PSU, 24 Vdc / 48 Vdc

Handling and Finishes

  • Material:

    Painted Aluminum

  • Colors:

    Black/ White/ Custom Ral

  • Dimensions (W x H x D):

    252.5 × 92 × 35 mm
    (9.94 × 3.62 × 1.38 in)

  • Weight:

    0,53 Kg (1,17 lbs)

Downloads

Core Datasheet

Preliminary V.01
